RTX-28 Ribbon Mic Output Transformer
€79.00 excl. VAT

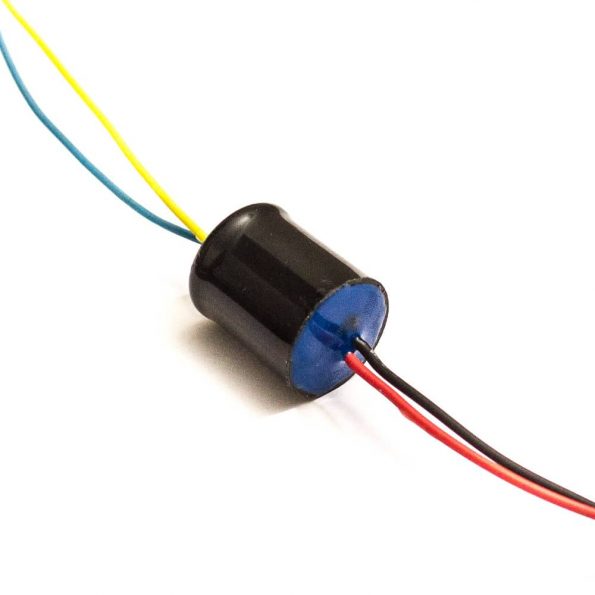

RTX-28 is a 1:28 output transformer of our own design for classical passive ribbon microphones with higher primary winding inductance to compliment to thinner foil gauges. It was designed for application in new ribbon mic DIY projects and existing budget ribbon microphone modding. RTX-28 is a premium quality component with excellent sonic properties.
[vc_row][vc_column][vc_column_text]Transformer is the second most important part in a classical ribbon microphone after, of course, a motor itself. While the motor defines the most of the sound character, the main purpose of a transformer is to amplify this very low level signal up to a working level, itself being as transparent as possible.
RTX-28 is a 1:28 output transformer of our own design for classical passive ribbon microphones with higher primary winding inductance to compliment to thinner foil gauges. It was designed for both – application in new ribbon mic DIY projects and existing budget ribbon microphone modding. RTX-28 is a premium quality component with excellent sonic properties. The primary winding has high enough inductance to provide the proper loading for typical ribbon motors in the whole frequency range.
Why Toroidal Design?
Toroidal transformers have numerous advantages, just few of them to mention:
- Probably the most important for ultra-low signal levels (as it is with ribbon motors): very high natural immunity to EMI (electromagnetic interference), meaning that hum and buzz will be less of a problem.
- Very low winding wire length for the same number of turns comparing to bobbin types, meaning much lower DCR (direct current resistance), thus much lower signal loss and higher efficiency.
- Flat response with high bandwidth.
- Dimensions: 26.0 mm (H) x 21.0 mm (D)
- Lead length: min. 110 mm (4.3″)
- Turns ratio: 1:28
- Primary DCR: 0.01 Ohm (Red & Black wires)
- Secondary DCR: <5 Ohms (Yellow & Blue wires)
- Primary inductance: 12 mH
- Phase shift: 3.5 deg @ 100 kHz
- THD: 0.0035% @ 1 kHz
- Low frequency roll-off: 20 Hz*
*20 Hz is an average number when used with typical higher impedance ribbons (3 mm wide, 1.2 – 1.8u foil), like RE-323 ribbon motor. This high-pass filter effect was added with intention to transformer in order to damp the subsonic rumble that ribbon microphones are so sensitive to and to compensate the resonance of the ribbon. It results in cleaner and flatter overall response and tight bass without “muddiness”, that is often associated with ribbons.[/vc_column_text][/vc_column][/vc_row]
