Bb-D2 DIY Discrete Op-Amp Direct Box

268.00 excl. VAT

Bumblebee Bb-D2 is a Discrete Op-Amp based active Direct Box with hi-end dual Jfet input stage and custom toroidal output transformer.

Out of stock

SKU: ITM-DI-02-1 Category: Tags: , ,


[vc_row css=”.vc_custom_1504785685462{margin-bottom: 40px !important;}”][vc_column][nm_button title=”Beginner-friendly illustrated assembly manual >>>” style=”filled_rounded” align=”center” link=”|||”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Bumblebee Bb-D2 Discrete Op-Amp Direct Box DIY Kit

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_single_image image=”1034″ img_size=”large”][vc_empty_space height=”15px”][vc_single_image image=”1068″ img_size=”large”][vc_empty_space height=”15px”][vc_single_image image=”1047″ img_size=”large” style=”vc_box_rounded”][vc_empty_space height=”15px”][/vc_column][vc_column width=”1/2″][vc_column_text]Bumblebee Bb-D2 is a discrete op-amp based Direct Box DIY kit with hi-end LSK389 dual Jfet input stage. The output is transformer-balanced with original custom-designed toroidal transformer.

We’ve designed the Bumblebee Bb-D2 DI to provide the high fidelity input stage for instruments during the direct recording or live reproduction. It is well-known that the input stage has the highest influence on signal in the whole signal chain. So, it is wise to use the best possible solution for the first device that directly interacts with your instrument.

The very high input impedance of Bumblebee Bb-D2 provides the proper loading for your passive pickups. Correctly loaded pickup coils tend to open up their sonic character in finest details. It is particularly obvious in hi-mid range, adding contour and clarity to the sound. Furthermore, the precision input Jfet reproduces and amplifies these specifics with ultimate authenticity.

What is Included

  • All the electronic parts – resistors, capacitors, diodes
  • LSK389B dual Jfet transistor
  • BC547C and BC557C bipolar transistors
  • Custom designed toroidal output transformer

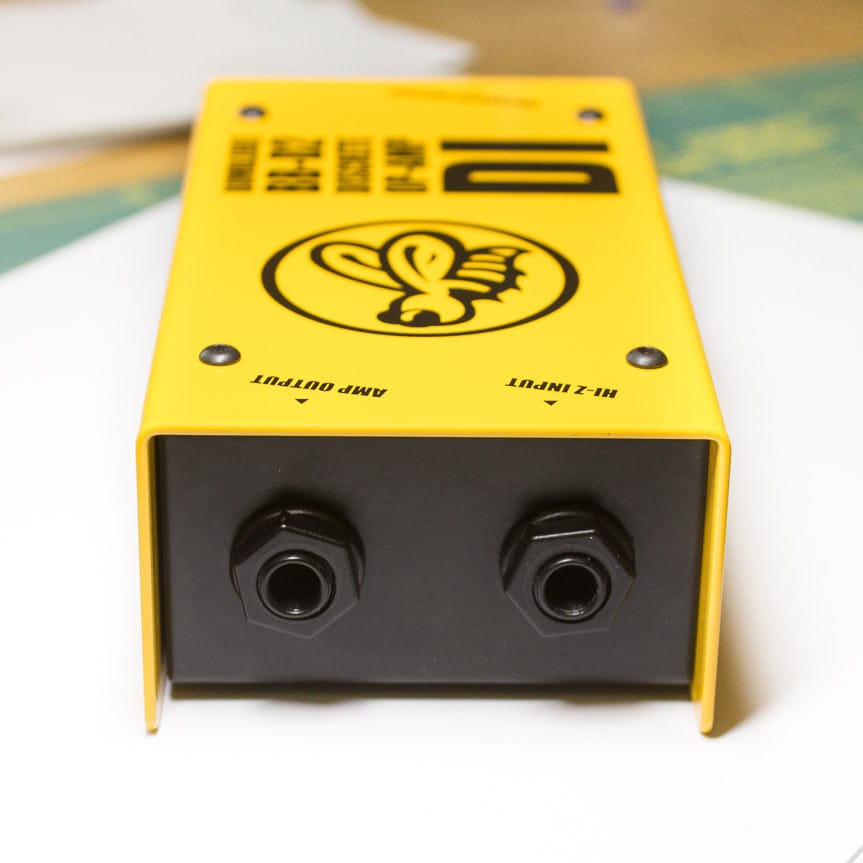

  • Neutrik connectors – a pair of jacks and an output XLR
  • PCB (printed circuit board)
  • Wire for grounding the top of the enclosure
  • Pre-drilled and punched, powder coated and silkscreened enclosure
  • All the required screws

Technical Information

  • Input Impedance: 10 MOhms
  • Maximum Input Level: 3.00 Vrms (+12 dBu)
  • Output Impedance (Balanced Out): 50 Ohms
  • Output Impedance (Amp Out): 10 KOhms
  • Powered by +48V phantom power
  • Electronic ground lift for breaking ground loops
  • Dimensions (L x W x H): 141 x 75 x 45 mm
  • Weight: 300 gr / 10 oz
